SWITCH DISCONNECTORS 4P 250A
SWITCH DISCONNECTORS 4P 250A

SWITCH DISCONNECTORS 4P 250A

Pilih Jumlah kutub
Pilih Arus pengenal
Kode Produk 31107
Nama Produk SWITCH DISCONNECTORS 4P 250A
Keterangan SWITCH DISCONNECTOR COMPACT INS250 STANDARD VERSION WITH BLACK ROTARY HANDLE SCHNEIDER ELECTRIC - 31107
Brand Schneider Electric
Poles 4P
Rated Current 250A
Tipe Compact INS
Kode Produk : 31107 Brand : Schneider Electric Nama Produk : SWITCH DISCONNECTORS 4P 250A Keterangan : SWITCH DISCONNECTOR COMPACT INS250 STANDARD VERSION WITH BLACK ROTARY HANDLE SCHNEIDER ELECTRIC - 31107

This Compact INS250 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 250A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS250 is a class II insulation level front-face device as per IEC 60664 standard.

Specification
Type of electrical connection of main circuit Screw connection
Version as emergency stop installation FALSE
Type of control element Long turning handle
Version as reversing switch FALSE
Suitable for front mounting centre TRUE
Rated permanent current Iu 250 Ampere
Max. rated operation voltage Ue AC 690 Volt
Number of poles 4
Height 136 Millimetre
Version as main switch TRUE
Rated short-time withstand current lcw 8.5 kiloampere
Voltage release optional FALSE
Device construction Built-in device fixed built-in technique
Interlockable TRUE
Width 140 Millimetre
Version as maintenance-/service switch TRUE
Number of auxiliary contacts as normally closed contact 0
Version as safety switch FALSE
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as change-over contact 2
Degree of protection (IP), front side IP40
Depth 96 Millimetre
Rated operating voltage 690 Volt
Colour control element Black
Rated operation power at AC-23, 400 V 132 Kilowatt
Suitable for front mounting 4-hole TRUE
Suitable for distribution board installation TRUE
Number of switches 1
Motor drive integrated FALSE
Suitable for intermediate mounting FALSE
Motor drive optional FALSE
Suitable for floor mounting TRUE
Rated permanent current at AC-23, 400 V 250 Ampere
Documents
Image of product
Image of product

Chat untuk Stock

Rp.3.345.318,-

40% Rp.5.575.530,-

Add to Cart

Free Ongkir Jabodetabek Menggunakan Kurir Toko Listrikkita

Mungkin Anda Suka

Chat untuk Stock

Rp.5.039.953

45% Rp.9.163.550

C12E34V160B

MCCB + ELCB 3P VIGI TM160D 16KA 380/415VAC
Compare

Chat untuk Stock

Rp.5.008.512

45% Rp.9.106.385

C11H34V100B

MCCB + ELCB 3P VIGI TM100D 70KA 380/415VAC
Compare

Chat untuk Stock

Rp.7.757.692

45% Rp.14.104.893

C12H44V160L

MCCB + ELCB 4P VIGI TM160D 70KA 380/415VAC
Compare

Chat untuk Stock

Rp.5.039.953

45% Rp.9.163.550

C12E34V160L

MCCB + ELCB 3P VIGI TM160D 16KA 380/415VAC
Compare

Chat untuk Stock

Rp.1.782.050

45% Rp.3.240.090

C11H3TM063L

MCCB 3P TM63D 70KA 380/415VAC
Compare

Chat untuk Stock

Rp.4.231.925

45% Rp.7.694.409

C11B34V050B

MCCB + ELCB 3P VIGI TM50D 25KA 380/415VAC
Compare

Chat untuk Stock

Rp.2.632.476

45% Rp.4.786.320

C12E6TM160L

MCCB 4P TM160D 16KA 380/415VAC
Compare

Chat untuk Stock

Rp.5.466.417

45% Rp.9.938.940

C11E44V025B

MCCB + ELCB 4P VIGI TM25D 16KA 380/415VAC
Compare

Chat untuk Stock

Rp.6.380.336

45% Rp.11.600.610

C12H34V160L

MCCB + ELCB 3P VIGI TM160D 70KA 380/415VAC
Compare

Chat untuk Stock

Rp.1.682.538

45% Rp.3.059.160

C11B6TM100L

MCCB 4P TM100D 25KA 380/415VAC
Compare

Chat untuk Stock

Rp.1.122.099

45% Rp.2.040.180

C11E3TM032L

MCCB 3P TM32D 16KA 380/415VAC
Compare

Chat untuk Stock

Rp.4.687.817

45% Rp.8.523.302

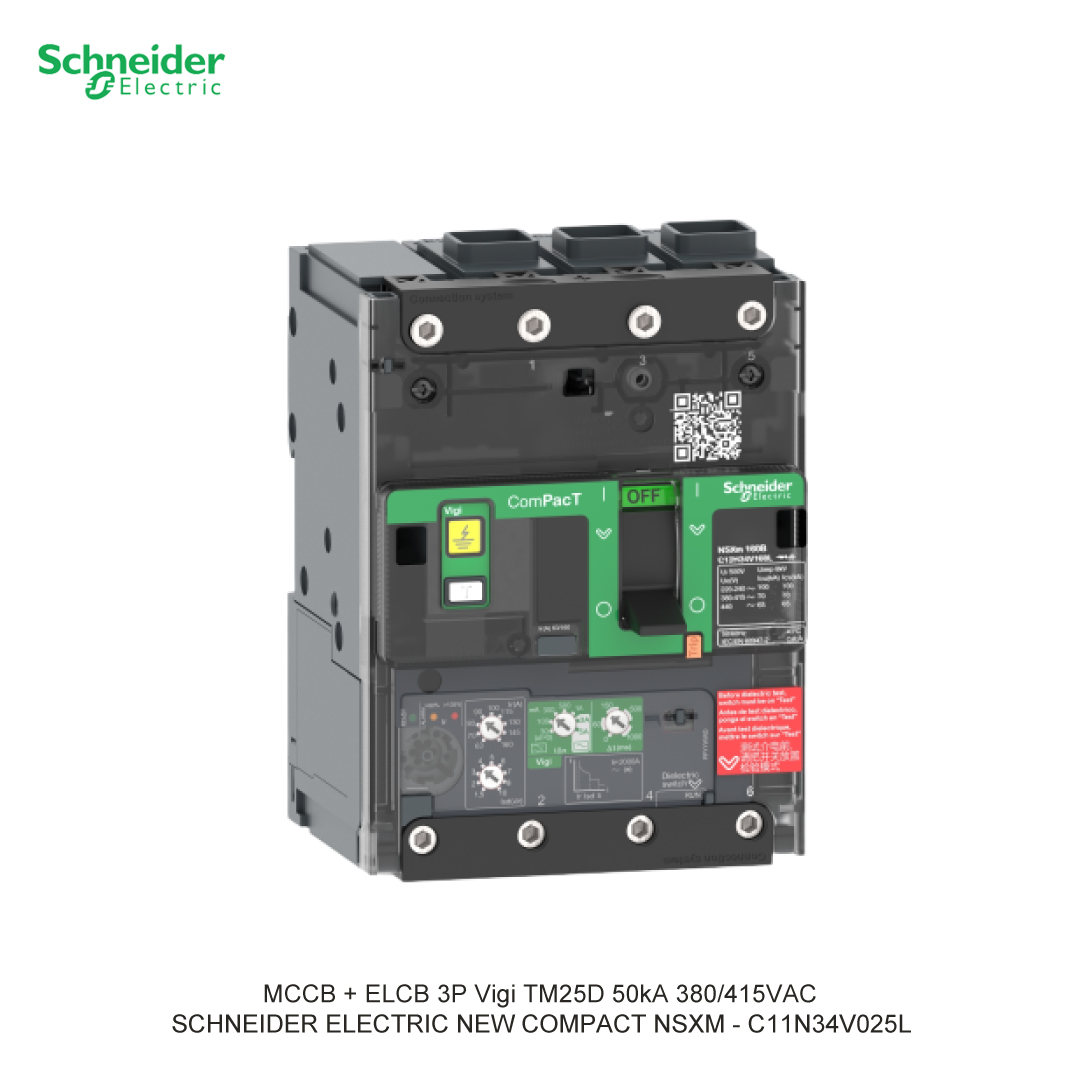

C11N34V025L
